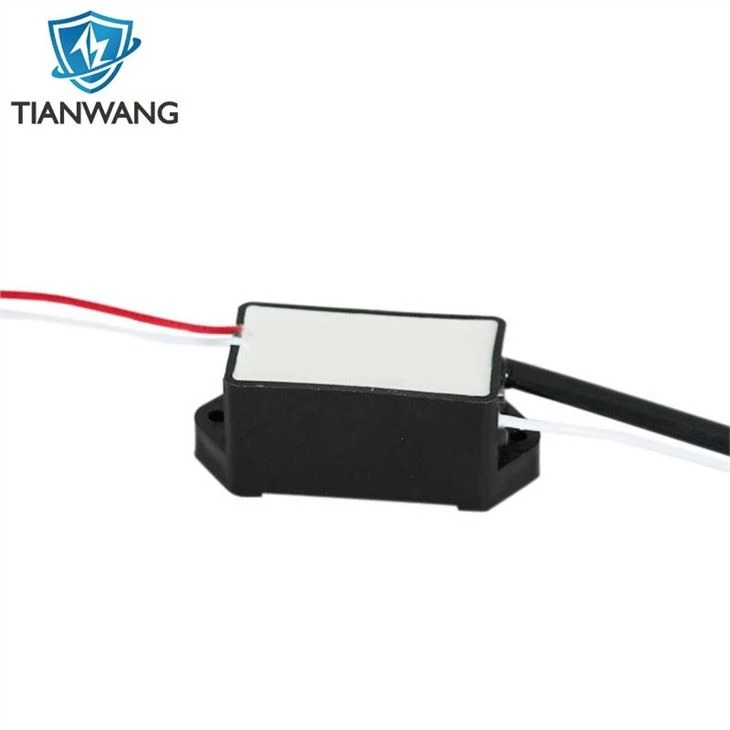

18볼트 프로판 점화기
video
18볼트 프로판 점화기

18볼트 프로판 점화기

18 volt propane igniter used to ignite propane gas in a heater,With spark contacts, the arc was noticeably louder than other ignitor module.
문의 보내기
채팅하기

제품 소개



생산 소개

전기 프로판 점화기, high voltage spark generator, when adjust the input voltage the spark frequency reduces and becomes quieter but also weaker. It have a strong spark without being too loud or high pitched in a way that is annoying.


Propane is commonly used as a fuel for barbecues, portable stoves and motor vehicles.  Propane is commonly used to power trains, buses, forklifts and taxis. It is also used as a fuel for heating and cooking in suVs and camping trips. Such as 가스레인지용 전기점화기,쿡탑 레인지 점화기. In some rural areas of North America, propane is used to fill heat producing appliances like stoves, water heaters and hand dryers. The 전기 프로판 점화기 produced by Jiangsu Skynet can help you achieve these applications.

schematic of the spark module

propane can be burned with sufficient oxygen to produce water and carbon dioxide.   When oxygen is not enough, water and carbon monoxide are formed.

Unlike natural gas, propane is heavier than air (about 1.5 times heavier).   In its natural state, propane falls and accumulates near the surface.   At atmospheric pressure, liquid propane quickly turns to vapor and appears white as water condenses in the air .

상품명

프로판 점화기

치수

Lenght : 67 mm; Widht: 30.5mm; Heigth : 31.5mm

공급 유형

DC

전원 전압

플러스 18V

출력 전압

18.5KVDC

전류(mA)

350mA

점화 거리

5-8mm

작동 온도

-15도 55도

습기

20~80%

작동 모드

간헐적 작동

Product functioning duration

일년

와이어 길이

120MM (customizable)

입력 와이어 직경

2.2MM (customizable)

출력 와이어 직경

6MM (customizable)

무게

40g



propane igniter size

Other uses of propane include:

Steam cracking for the preparation of basic petrochemical products.

Used as fuel or pressurized gas in some flamethrowers.

Propanol production raw materials.

The main fuel for hot air balloons.

Used to precipitate emery in the semiconductor industry

Propane mixed with silicon is used as a propellant for an air gun (marketed as green gas) used in survival games.

In some theme parks and movie shoots, liquid propane is used as a cheap, high-energy substance to create explosions and other visual effects.



자주하는 질문

1. Q: what's the operating mode ?  for example : continuous working or intermittently

  A: intermittent operation

2. Q: What is the combustion temperature of propane gas igniter?  I made a burner to smelt copper by myself, and then the flame temperature of propane was only 1000 degrees. Is it the reason that I did not have plus oxygen? Is it the reason that oxygen temperature can rise?  Roughly how many degrees can it go up.

A: 프로판은 산소에서 2500도 미만에서 연소되지만 산소가 충분하고 과학적으로 제어된다면 2000도에 도달해도 문제가 없을 것입니다.
